Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line for High Speed Production of ID30-ID1500mm Pipes with 33:1 Screw Ratio

  • Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line for High Speed Production of ID30-ID1500mm Pipes with 33:1 Screw Ratio
  • Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line for High Speed Production of ID30-ID1500mm Pipes with 33:1 Screw Ratio
  • Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line for High Speed Production of ID30-ID1500mm Pipes with 33:1 Screw Ratio
  • Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line for High Speed Production of ID30-ID1500mm Pipes with 33:1 Screw Ratio
  • Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line for High Speed Production of ID30-ID1500mm Pipes with 33:1 Screw Ratio
  • Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line for High Speed Production of ID30-ID1500mm Pipes with 33:1 Screw Ratio
Marca HUASU
Certificazione ISO, CE
Model Number SBG
Minimum Order Quantity 1 SET
Packaging Details Standard Package
Delivery Time 30-90Day
Termini di pagamento Tt, l/c

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Specifiche DI30-DI1500mm Plc Siemens
Tipo Estrusore tubo Modello HDPE PP PVC
Materiali Particelle di PE/PP Lunghezza del serbatoio di raffreddamento Da 6m a 12m
Rapporto a vite 33:1 Tipo di velocità Ad alta velocità
Evidenziare

Aluminium Alloy Mould Double Wall Corrugated Pipe Extrusion Line

,

ID30-ID1500mm Pipes Corrugated Pipe Extrusion Machine

,

33:1 Screw Ratio DWC Pipe Production Line
Lasciate un messaggio
Descrizione di prodotto

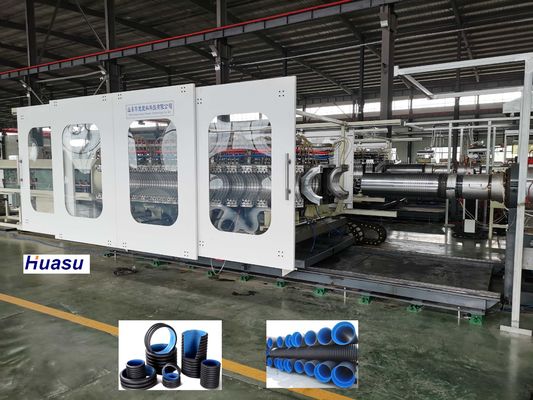

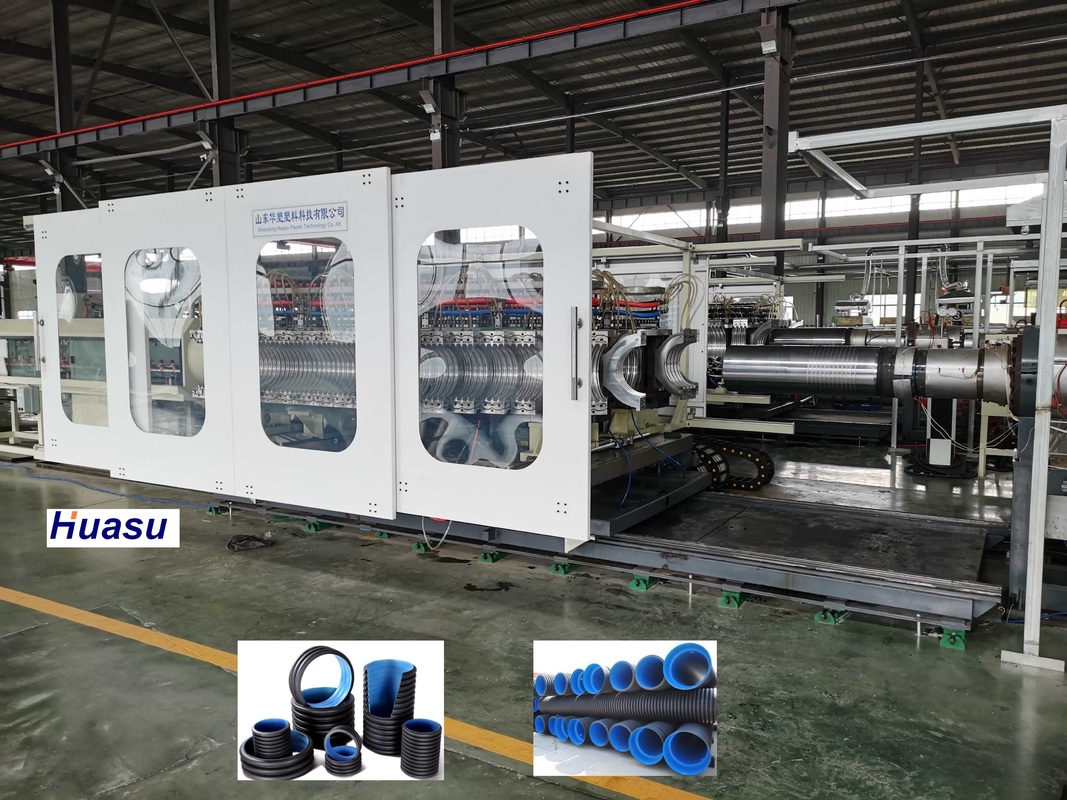

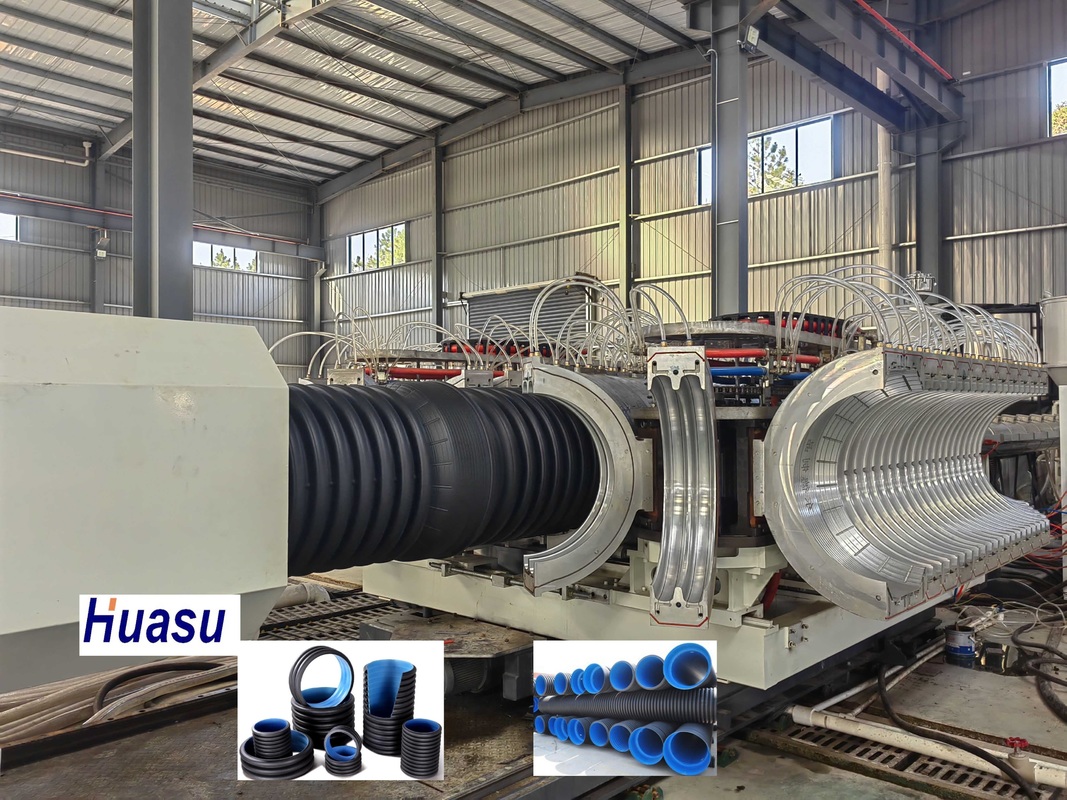

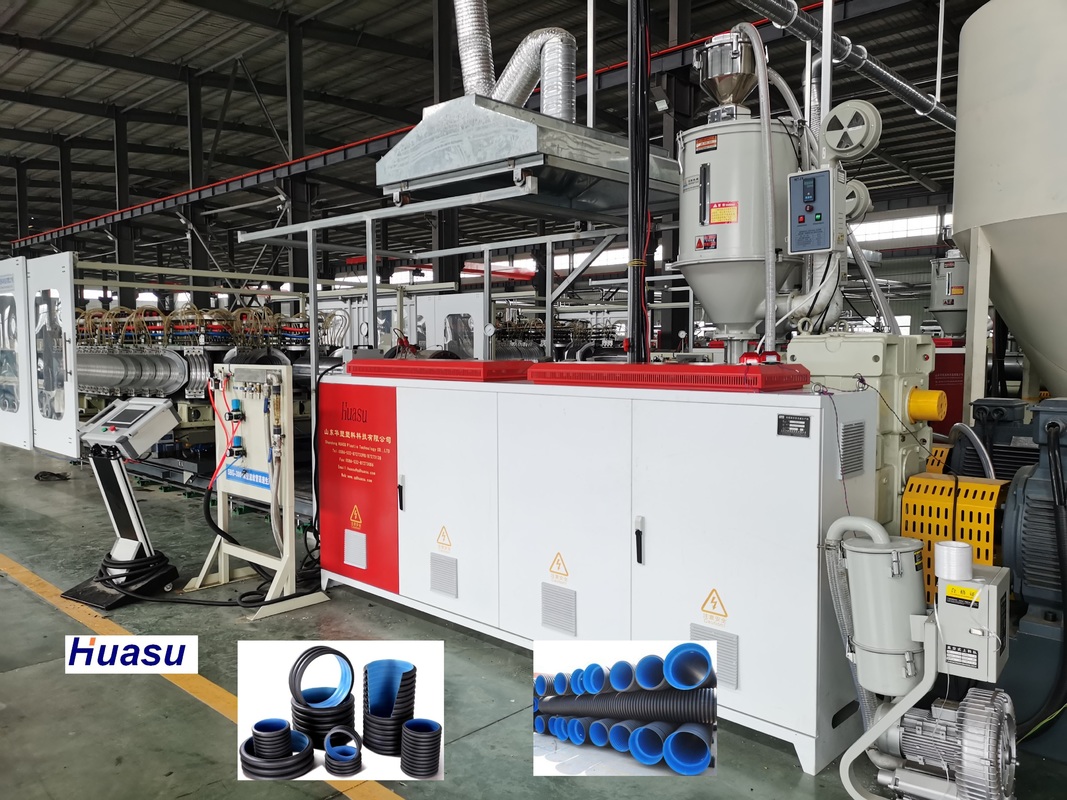

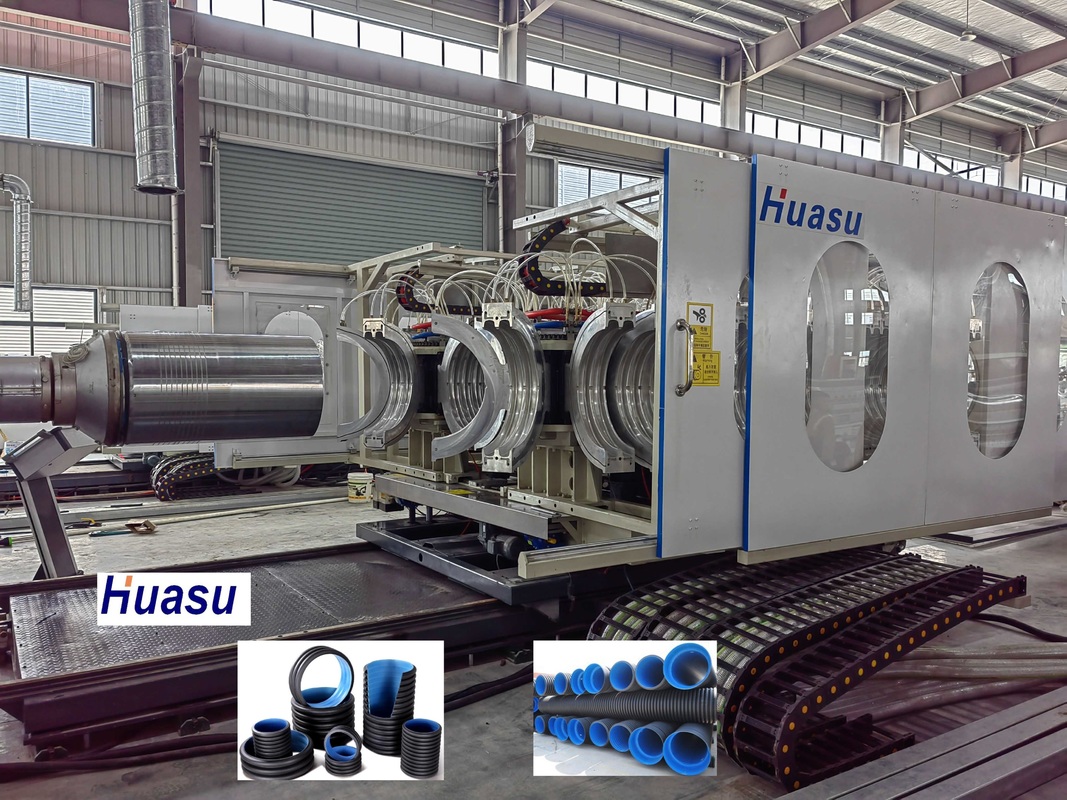

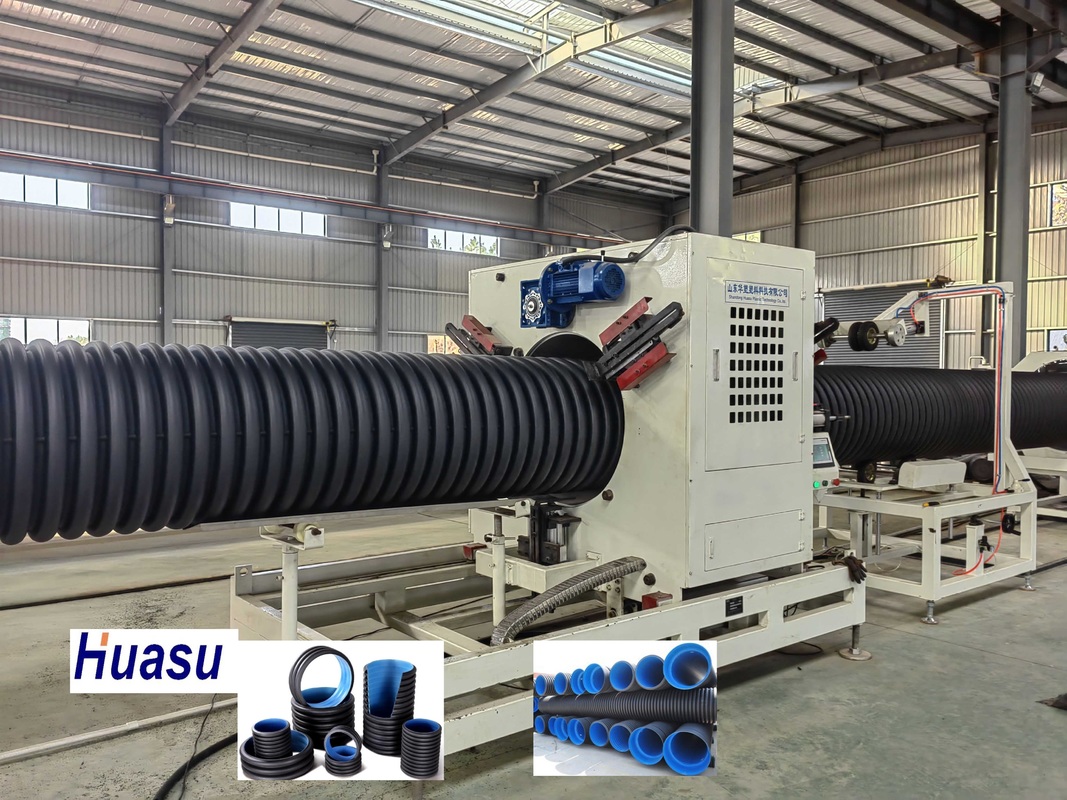

Aluminium Alloy Mould Material Double Wall Corrugated Pipe Extrusion Line
High Speed Production of ID30-ID1500mm Pipes
Our Double Wall Corrugated Pipe Extrusion Line delivers exceptional performance for producing high-quality pipes with inner diameters ranging from 30mm to 1500mm. With 23 years of manufacturing experience, we provide reliable plastic pipe production equipment that meets industry standards.
Key Features
  • Production Experience: 23 Years
  • Haul-Off Type: Caterpillar or Belt Type options
  • Control System: Siemens PLC
  • Materials: PE/PP Particle compatible
  • Mould Material: High-quality Aluminium Alloy
  • Speed Type: High Speed production
Technical Specifications
Parameter Specification
Screw Ratio 33:1
Pipe Range ID30-ID1500mm
Materials PE/PP Particle
Cooling Tank Length 6m to 12m
Mould Material Aluminium Alloy
Screw and Barrel 38CrMoAlA
Applications
This versatile extrusion line is ideal for manufacturing plastic corrugated pipes for various industries including:
  • Drainage systems
  • Agricultural irrigation
  • Telecommunications infrastructure
  • Industrial piping applications
ISO and CE certified, this production line offers reliable performance with a delivery time of 30-90 days. The machine's durable construction and compatibility with various materials make it a valuable investment for any manufacturing facility.
